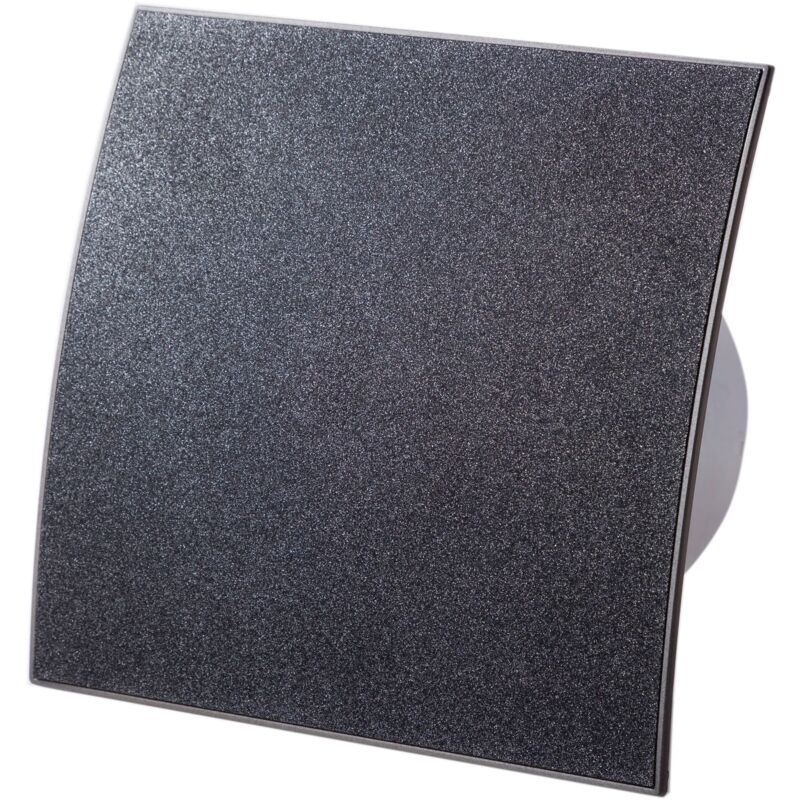

General description The Extractor Fan System Silent Escudo Graphite 100 is designed for efficient ventilation in various settings. With its sleek graphite front panel made of durable ABS plastic, this fan combines functionality with modern aesthetics. Technical specifications Voltage: 220-240 V ~ 50 Hz Nominal size: 100 mm Speed levels: 1 Wattage: 5 W Revolutions per minute: 1900 Max. airflow rate: 75 m³/h Sound pressure level Lp-3m: 26 dB(A) Total pressure Pmax.: 26 Pa IP rating: IPX4 Max. ambient temperature: +40°C Diameter pipe connection: 100 mm Front cover dimensions: 160 x 160 x 30 mm Total depth: 118 mm Weight: 0.7 kg Other information Adjustable shut-off timer (3-30 min) Humidity sensor (40-90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value Mounting options: wall, ceiling Application: direct connection to the ventilation shaft
Price: £82.60 from ManoMano UK
| Stockist | Price | |
|---|---|---|
| ManoMano UK | £82.60 | Visit Store |
Dimensions and technical details 220-240 V ~ 50 Hz Front panel colour: graphite Front panel material: ABS plastic Nominal size: 100 mm Speed levels: 1 Wattage: 5 W Revolutions per minute: 1900 Max. airflow rate: 75 m³/h Sound pressure level Lp-3m: 26...
General description The Extractor Fan System Silent Escudo Graphite 100 is designed for efficient ventilation in various settings. Its sleek graphite front panel made of durable ABS plastic adds a modern touch while ensuring functionality. Technical specifications...
Dimensions and technical details 220-240 V ~ 50 Hz Front panel colour: glossy red Front panel material: glass Nominal size: 100 mm Speed levels: 1 Wattage: 5 W Revolutions per minute: 1900 Max. airflow rate: 75 m³/h Sound pressure level Lp-3m: 26 dB(A)...
