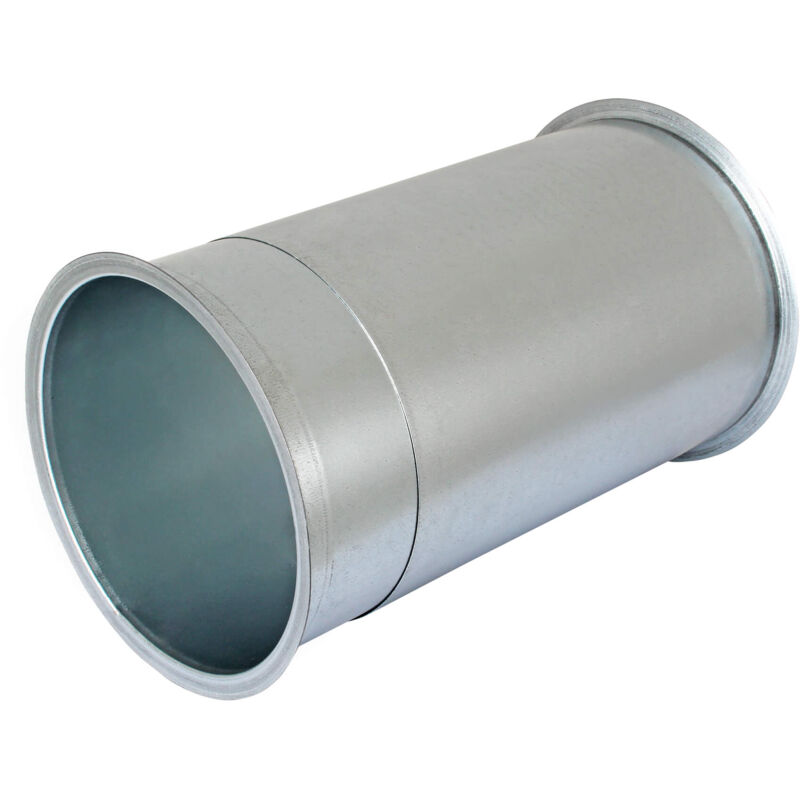

General description The Telescopic Tube Wall Duct TWRH is an adjustable solution designed for axial-flow wall fans. It is available in various sizes, allowing for flexibility in installation and use in different wall thicknesses. Technical specifications Material: Galvanised steel sheet Size adjustable between 250 - 450 mm Brim: Circular 10 mm on both ends Application: Suitable for walls with up to 470 mm thickness; can be shortened on-site for walls less than 250 mm Model Drill hole (mm) Inside Ø A (mm) C (mm) D (mm) Outside Ø B (mm) Weight (kg) TWRH 170 183 170 190 250 230 1.4 TWRH 220 233 220 240 250 230 1.8 TWRH 270 283 270 290 250 230 2.2 TWRH 330 343 330 350 250 230 2.7 TWRH 375 388 375 395 250 230 3.0 TWRH 440 453 440 460 250 230 3.8 TWRH 470 483 470 490 250 230 3.9 TWRH 525 538 525 545 250 230 4.3 TWRH 620 633 620 640 250 230 5.0 TWRH 645 658 645 665 250 230 5.3 Compatibility and accessories Model Compatible with TWRH 170 M 150 - MF 150 - Novus LHV 160 TWRH 220 EQ 20 - Novus
Price: £191.39 from ManoMano UK
| Stockist | Price | |
|---|---|---|
| ManoMano UK | £191.39 | Visit Store |
Dimensions and technical details Adjustable wall duct for axial-flow wall fans Various size options available Material: galvanised steel sheet, circular 10 mm brim on both ends Size adjustable between 250 - 450 mm Application: in walls with up to 470...
