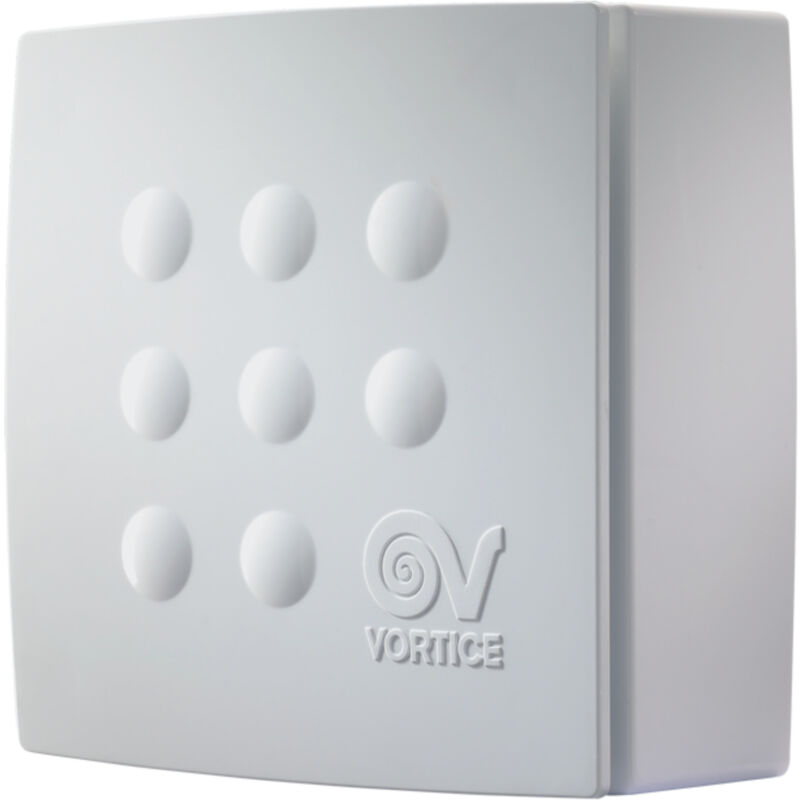

General description The Centrifugal Duct Fan Quadro Micro I THCS is designed for efficient ventilation in various settings. It features a sleek white housing made from durable, non-yellowing, UV-resistant ABS plastic. This fan is equipped with adjustable speed levels and a range of advanced features to ensure optimal performance and convenience. Technical specifications Voltage: 220-240 V ~ 50 Hz Nominal diameter: 100 mm Speed levels: 2 Wattage: 20 / 27 W Current consumption: 0.1 / 0.12 A Revolutions per minute: 1010 / 1450 Airflow rate: 75 / 100 m³/h Total pressure Pmax: 196 / 218 Pa Sound pressure Lp-3m: 26.3 / 34.3 dB(A) Max. temperature for continuous operation: 50°C IP code: IPX4 Insulation class: II Diameter duct connector: 92 mm Dimensions front cover: 258 x 258 x 34 mm Total depth: 152 mm Total depth with duct connector: 178 mm Weight: 1.9 kg Other information Adjustable shut-off timer (3-20 min) Humidity sensor (60-90%): fan turns off after expiration of the pre-set time once
Price: £327.79 from ManoMano UK
| Stockist | Price | |
|---|---|---|
| ManoMano UK | £327.79 | Visit Store |
General description The Centrifugal Duct Fan Quadro Micro 100 THCS is designed for efficient ventilation in various environments. It features a robust ABS plastic housing that is non-yellowing and UV-resistant, ensuring durability and longevity. This...
Dimensions and technical details 220-240 V ~ 50 Hz Housing colour: white Housing material: ABS plastic, non-yellowing, UV-resistant Nominal diameter: 100 mm Speed levels: 2 Wattage: 25 / 29 W Current consumption: 0.14 / 0.18 A Revolutions per minute:...
General description The Centrifugal Duct Fan Quadro Medio THCS is designed for efficient ventilation in various settings. It features a robust ABS plastic housing that is non-yellowing and UV-resistant, ensuring durability and longevity. Technical specifications...
